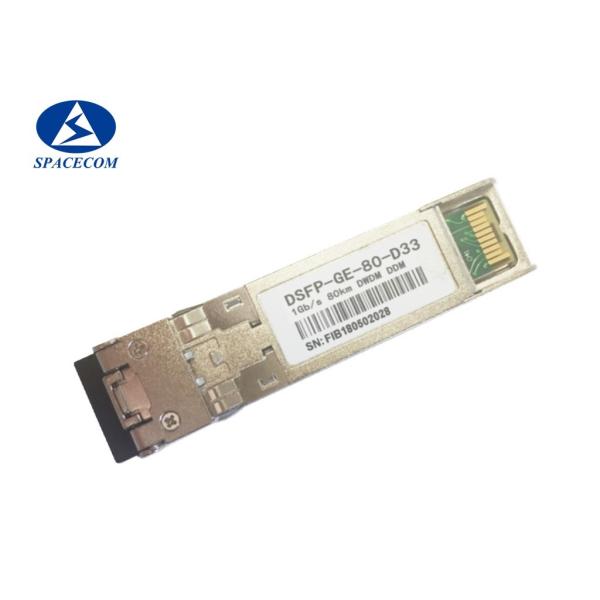

Compliant 1.25Gb/s SFP DWDM 80km for H3C Optical Transceiver
Description
SPACECOM 1.25G SFP DWDM 80km supports the 2-wire serial communication protocol as defined in SFP MSA. Digital diagnostic information is accessible over the 2-wire interface at the address 0xA2. Digital diagnostics for SFP-GE-DWDM-XX are internally calibrated by default. The internal micro control unit accesses the device operating parameters in real time,Such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.The module implements the alarm function of the SFP MSA, alerts the user when a particular operating parameter exceeds the factory-set normal range.
| Product Name: | 1.25G SFP DWDM 80Km | Model Name: | SFP-GE-DWDM-DXX |
| Wavelength: | 1528.77nm ~1563.05nm | Data Rate: | 1.25Gbps |
| Transmission Distance: | 80KM | Connector Type: | LC |
| DDM: | YES | Working Environment: | Commercial 0~70℃ |
| Cable Type: | SMF | Compatibility: | Multiple brands of switches |
Features
- Up to 1.25Gb/s bi-directional data links
- Compliant with SFP MSA
- Hot-Pluggable
- Built-in digital diagnostic functions
- Temperature-stabilized DWDM rated EML laser transmitter
- Receiver with APD
- Duplex LC connector
- Up to 80km on SMF
- Single power supply 3.3V
- RoHS Compliant
- Operating case temperature range: 0◦C to 70◦C
Applications
- DWDM networks
- Fast Ethernet, Giga Ethernet
- Fiber Channel
Quality control
More Question
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.
2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.
3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
4. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.
Could also support L/C,Credit terms.
5. What is your warranty time
We promise 3 years warranty for all products shipped from us.
6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.
7. Could i use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
Product Tags:
|
|
1528.77nm SFP Transceiver Modules DWDM 1.25Gbps 80km Duplex LC connector Images
|
